Piezas y Repuestos Perforadora YT20

Descripción

Maquina de alta eficacia, principalmente usada en trabajos de galerías de extracción. Es la herramienta mas importante en la obra ferroviaria, hidráulica y defensa nacional.

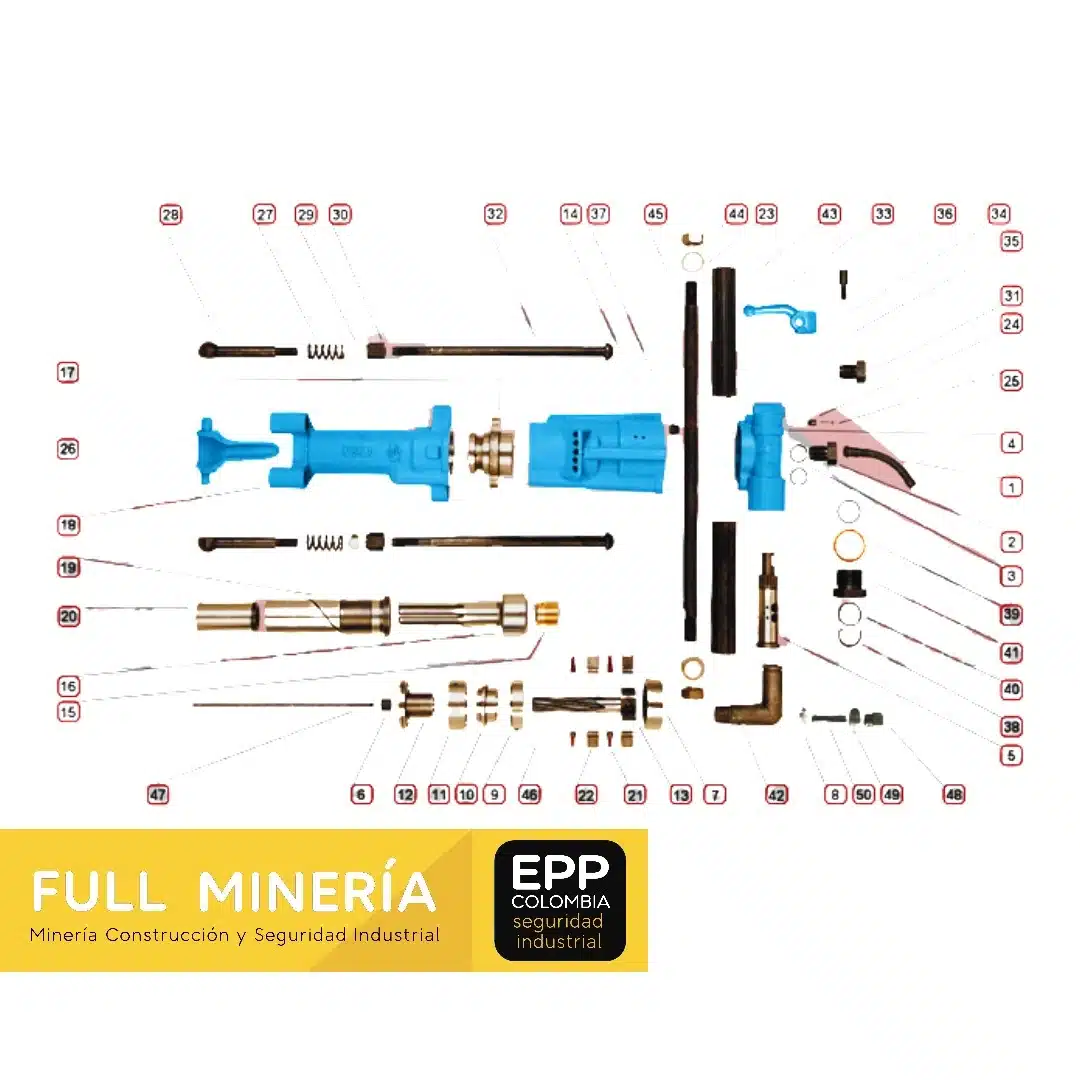

PARA SOLICITAR UNA PIEZA O REPUESTO DEL YT20 GUIARSE POR CÓDIGOS DE IMÁGENES.

Información adicional

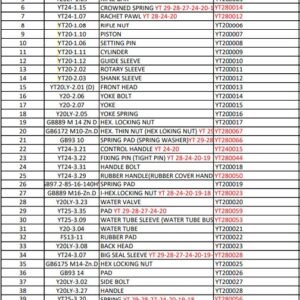

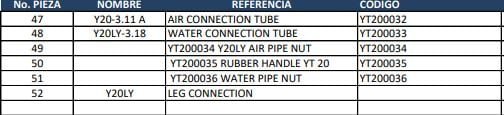

Piezas	(#1) – Valve Cover, (#2) – Valve, (#3) – Valve Chest, (#4) – Ratchet, (#5) – Rifle Bar, (#6) – Crowned Spring, (#7) – Rachet Pawl, (#8) – Rifle Nut, (#9) – Piston, (#10) – Setting Pin, (#11) – Cylinder, (#12) – Guide Sleeve, (#13) – Rotary Sleeve, (#14) – Shank Sleeve, (#15) – Front Head, (#16) – Yoke Bolt, (#17) – Yoke, (#18) – Yoke Spring, (#19) – Hex. Locking Nut, (#20) – Hex. Thin Nut (Hex Loking Nut), (#21) – Spring Pad (Spring Washer), (#22) – Control Handle, (#23) – Fixing Pin (Tight Pin), (#24) – Handle Bolt, (#25) – Rubber Handle(Rubber Cover Handle), (#26) – Spring Pad, (#27) – I-Hex.Locking Nut, (#28) – Water Valve, (#29) – Pad, (#30) – Water Tube Sleeve (Water Tube Bush), (#31) – Water Tube, (#32) – Rubber Pad, (#33) – Back Head, (#34) – Big Seal Sleeve, (#35) – Hex Locking Nut, (#36) – Pad, (#37) – Side Bolt, (#38) – Handle, (#39) – Spring, (#40) – Setting Pin, (#41) – Control Valve, (#42) – O-Seal Ring(22×3.1), (#43) – Seal Ring (Seal Bushing), (#44) – Steel Wire Ring Clamp (Retaining Ring), (#45) – O-Seal Ring(22×2.4), (#46) – Steel Wire Ring Clamp (Retaining Ring), (#47) – Air Connection Tube, (#48) – Water Connection Tube, (#49) – Yt200034 Y20ly Air Pipe Nut, (#50) – Yt200035 Rubber Handle Yt 20

Piezas

(#1) – Valve Cover, (#2) – Valve, (#3) – Valve Chest, (#4) – Ratchet, (#5) – Rifle Bar, (#6) – Crowned Spring, (#7) – Rachet Pawl, (#8) – Rifle Nut, (#9) – Piston, (#10) – Setting Pin, (#11) – Cylinder, (#12) – Guide Sleeve, (#13) – Rotary Sleeve, (#14) – Shank Sleeve, (#15) – Front Head, (#16) – Yoke Bolt, (#17) – Yoke, (#18) – Yoke Spring, (#19) – Hex. Locking Nut, (#20) – Hex. Thin Nut (Hex Loking Nut), (#21) – Spring Pad (Spring Washer), (#22) – Control Handle, (#23) – Fixing Pin (Tight Pin), (#24) – Handle Bolt, (#25) – Rubber Handle(Rubber Cover Handle), (#26) – Spring Pad, (#27) – I-Hex.Locking Nut, (#28) – Water Valve, (#29) – Pad, (#30) – Water Tube Sleeve (Water Tube Bush), (#31) – Water Tube, (#32) – Rubber Pad, (#33) – Back Head, (#34) – Big Seal Sleeve, (#35) – Hex Locking Nut, (#36) – Pad, (#37) – Side Bolt, (#38) – Handle, (#39) – Spring, (#40) – Setting Pin, (#41) – Control Valve, (#42) – O-Seal Ring(22×3.1), (#43) – Seal Ring (Seal Bushing), (#44) – Steel Wire Ring Clamp (Retaining Ring), (#45) – O-Seal Ring(22×2.4), (#46) – Steel Wire Ring Clamp (Retaining Ring), (#47) – Air Connection Tube, (#48) – Water Connection Tube, (#49) – Yt200034 Y20ly Air Pipe Nut, (#50) – Yt200035 Rubber Handle Yt 20
